Product Details

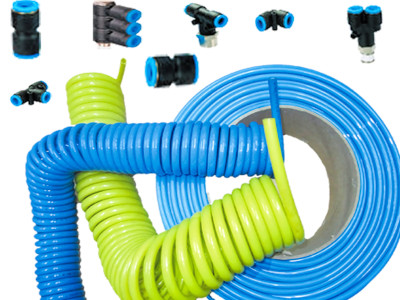

POLYURETHANE (PU) TUBE BLUE-YELLOW- TRANSPARENT- BLACK
NYLON TUBE - TRANSPARENT.
Working Pressure
10kg/cm2
Temperature
5°C - 60°C
Size
OD.
OD Tolerance
±0.1mm
Applications
Pneumatic tube and One touch fittings for all types of pneumatic cylinders - directional control valves, solenoid valves and other valves - Air preparation units like filter, regulator and lubricators - Pneumatic control panels - All compressed air lines, all machineries controlled by pneumatic systems - pneumatic circuits in any industry.
Polyurethane (PU) Tube Range / Specifications
ID X OD mm |
Working Pressure Kg/bar |
ID X OD mm |
Working Pressure Kg/bar |
ID X OD mm |
Working Pressure Kg/bar |
2 X 4 |
10 |
6.5 X 10 |
10 |
10 X 14 |
8 |
3 X 5 |
10 |
8 X 10 |
5 |
12 X 16 |
6 |
4 X 6 |
8 |
8 X 11 |
7 |
|
|
5 X 8 |
12 |
8 X 12 |
10 |
|
|
5.5 X 8 |
10 |
9 X 12 |
8 |
|
|
Polyurethane (PU) Spiral Tube Range / Specifications
ID X OD mm |
Stand Lengths |
4 X 6 |
3 / 5 / 10/ 15 Mtrs. |
5 X 8 |
3 / 5 / 10/ 15 Mtrs. |
5.5 X 8 |
3 / 5 / 10/ 15 Mtrs. |
6.5 X 10 |
3 / 5 / 10/ 15 Mtrs. |
8 X 12 |
3 / 5 / 10/ 15 Mtrs. |
12 X 16 |
3 / 5 / 10/ 15 Mtrs. |
One Touch fittings - on request.
