Hoses for O.H.T.C. Machines


PU Hose Heavy Duty


STRUCTURE

Wall made of abrasion resistant Polyether-Polyurethane - as microbes and hydrolysis resistant version (wall thickness between the spirals approx. 0.6 mm), copper-plated spring steel spiral embedded into the wall

CHARACTERISTICS

Light and extremely flexible hose with good tensile and abrasion strengths and ultimate elongation. Free of softeners, halogens and cadmiums, resistant to hydrolysis and microbes

APPLICATIONS

Flexaflex Industries is the leading manufacturers of PU Hoses and this Heavy Duty quality PU Hose K1Z MC PU Virgin Food Grade (0.6 mm) suits well with all applications of various spinning mill machines and wood working machineries for better service life but at a higher price levels. For OHTC and humidification plants light duty hose will not work. Similarly for dust collectors which handles particle board waste and sharp wood shavings, Light duty hose does not work well as the inside hose surface is not smooth or having sufficient wall thickness to withstand such abrasion. Hence heavy duty is the only alternative for the above applications and also for light material handling in plastic, rubber, food and pharmaceutical industries, warm air conveyance, Exhaust of smoke and chemical fumes and other air pollution control machineries in cement, metal crushing, rubber, food and pharmaceutical industries. For Flexographic / Rotogravure / Offset printing machines, ceramic and packaging industries.

TEMPERATURE RANGE

-40℃ to +100℃ (Short-term up to +125℃)

COLOUR

Grey / Transparent / Blue

SPECIALS

Also available as Flame Retardant and Permanently Antistatic versions.

PU Hose Heavy Duty
PU Hose Heavy Duty
PU Hose Heavy Duty


Murata Autoconer Suction Hose


Product Details

Hose wall made of PP film and reinforced with extra strong spring steel wire. Capable of axial compression in to fixed position. A self supporting hose which can take any shape / position. Good resistance to UV and ozone, chemicals, fumes etc.

Sizes

102mm & 127mm

Temperature

80°C

Murata Autoconer Suction Hose
Murata Autoconer Suction Hose


PVC Duct Hose-Grey


STRUCTURE

Hose made of spiral reinforcement of rigid PVC into fine grade soft PVC. Made available in Grey / Transparent / Blue colours. A moderately flexible light duty hose for collection and conveying of air, dust and light materials. Quality PVC compounding and production techniques have made the hose with better flexibility and service life than other commercial brands. PVC material, not being nature friendly, is slowly finding its way out of market. This is mainly due to the fact that PVC hose loses flexibility fast and develops cracks all over the hose. Very poor abrasion resistance also results in poor service life. However, PVC being chemically inert and inexpensive is still mostly preferred industrial duct hose in Asian and African countries, although Polyurethane (PU) hoses with steel wire reinforcement has started replacing PVC flexible duct hoses at an enormous speed.

APPLICATIONS

Flexaflex Hose Industries is the leading Duct Hose Suppliers in Coimbatore, Tamil Nadu, India. PVC Flexible Duct Hose is Well accepted hoses in Textile Machineries like OHTC (Over Head Travelling Cleaners), Carding and Drawing Machines, Comber, Blow Room, Auto Coner, Humidification Plants, Dust Collection Systems, Compact Spinning machines and also for various dust collection equipments with Spinning, Ginning, Twisting, Weaving, Dying, Cutting & Stitching and Hosiery - Wood Working Industry - as dust collector hoses for Edge Banders, CNC Routers and Engravers, Planners, Sanders, Panel Saw - Warm Air Conveyance - fine dust and light non abrasive particle removal in asbestos and fiberglass industries. Industrial Vacuum Cleaners and other floor care applications - Material Conveying in plastic processing machineries - Rubber and Chemical Industries.

Temperature

60°C

COLOUR

Grey / Transparent / Blue

PVC Duct Hose
PVC Duct Hose-Grey


PVC Duct Hose- Blue


Product Details

Hose made of spiral reinforcement of rigid PVC into fine grade soft PVC

Sizes

102mm & 127mm

Temperature

60°C

PVC Duct Hose
PVC Duct Hose- Blue


PVC Coated Polyester Fabric Air Hose – Grey


STRUCTURE

PVC coated on both sides light polyester fabric hose / reinforced with medium heavy spring steel wire.

APPLICATIONS

Conveyance of light duty air, dust, air conditioning and ventilation technology. For China Bale Plucker (Textile machinery) for screw road cover (conduit) etc.

Temperature

-20℃ to +70℃

COLOUR

Grey

PVC Coated Polyester Fabric Air Hose – Grey
PVC Coated Polyester Fabric Air Hose – Grey

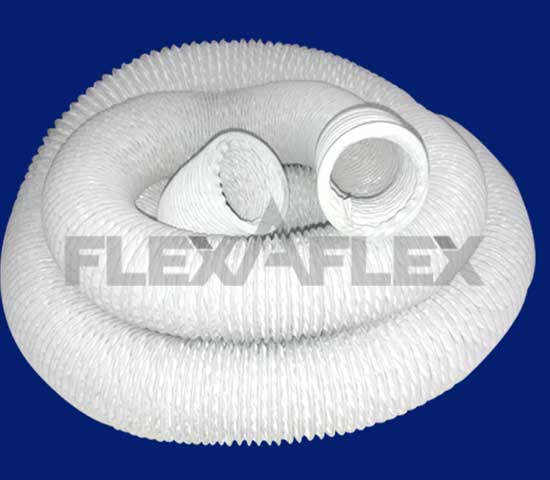

PVC Coated Polyester Fabric Air Hose – White


Product Details

PVC Film reinforced with spring steel wire.

Temperature

80°C

fabric-hose-blue-white
PVC Coated Polyester Fabric Air Hose – White


PVC Coated Polyester Fabric Air Hose – Blue


Product Details

PVC Coated Polyester Fabric with spring steel wire reinforcement.

Temperature

80°C

fabric-hose-blue
PVC Coated Polyester Fabric Air Hose – Blue


O.H.T.C. Heavy Hose Clamp


OHTC-heavy-champ
Heavy Hose Clamp

Product Details

Stainless steel hose clamp securely fastens hoses

OHTC Straight Hoses 2500mm Length


ohtc
OHTC Straight Hoses 2500mm Length



OHTC

OHTC

OHTC
