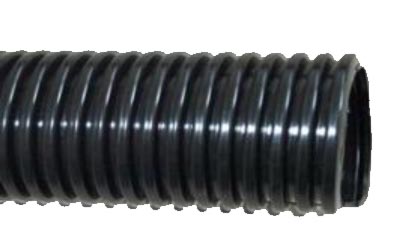

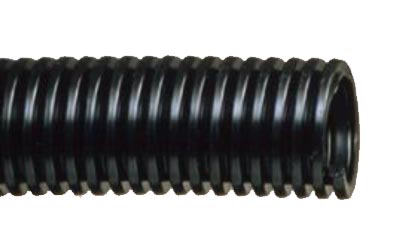

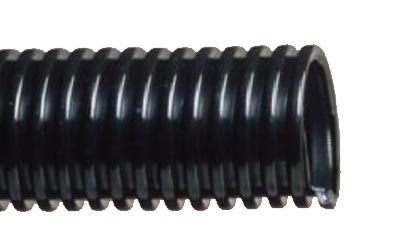

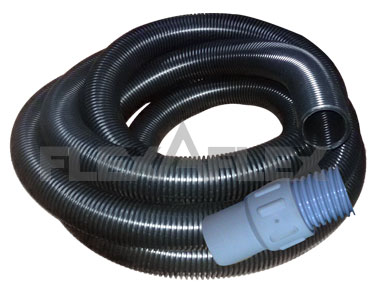

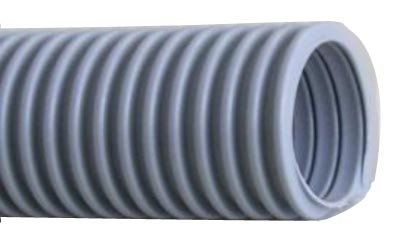

EVA Profile Hose / Industrial Vacuum Cleaner Hose

Industrial Vaccum Cleaner /Swimming Pool Hose

Light Duty and heavy duty EVA hoses for industrial vacuum cleaners (wet and dry) and also for swimming pool cleaning.

Temperature

65°C

Colour

Grey / Black / Blue.

Technical Specifications

I.D. mm	Vacuum bar	Bending Radius.mm	Std. Lengths
25	0.500	66	20
32	0.500	82	20
38	0.500	93	20
45	0.500	111	20
50	0.500	121	20
EVA	EVA (ANT)	EVA (EL)	EVA (HR)
DETAILS An inside very smooth, crush proof, full plastic flexible hose, made of modified EVA	DETAILS Like VSM, but made of antistatic EVA(surface resistance <1012 Ohms/m)	DETAILS Like VSM, but made of electro conductive material (surface resistance <106Ohms/m)	DETAILS Like VSM, but made of heat stabilized TPE material
APPLICATIONS Material handling, protection, welding fume extraction, floor care.	APPLICATIONS Material handling, dust extraction, industrial vacuum cleaner.	APPLICATIONS Material handling, dust extraction, industrial vacuum cleaner.	APPLICATIONS Chemical industry, hot air supply
TEMPERATURE -50°C to +60°C	TEMPERATURE -50°C to +60°C	TEMPERATURE -50°C to +60°C	TEMPERATURE -60°C to + 120°C
ID 13-102 mm	ID 13-102 mm	ID 13-102 mm	ID 13-80 mm
STD. COLOUR Grey Standard screw type cuffs available.	STD. COLOUR Black Standard screw type electro-conductive cuffs available.	STD. COLOUR Black Standard screw type electro-conductive cuffs available.	STD. COLOUR Black Special oil resistant version also available.
